Precision-Engineered Rock Wool: Built to Your Specifications

Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: FANRYN
Szczegóły pakowania: Plastikowa torba
Czas dostawy: 10 dni roboczych
Zasady płatności: T/T
Szczegóły informacji
Gęstość: 40-200kg/m3 Typ: Inne materiały termoizolacyjne, koc, wełna skalna, wełna mineralna z wełny mineralnej z włókna dźwię
Kolor: ŻÓŁTY Grubość: 30-100mm
Aplikacja: Konstrukcja, 25-200 mm, Izolacja rur parowych, Izolacja budynków metalowych, Materiał do izolacji te Tworzywo: Włókno szklane, bazalt, wełna mineralna, gabro, włókno szklane
Klasa palności: Nieprzestrzegalny stopień A1, niepotrzebny stopień A Funkcja: Niezamalne, wodoodporne, izolacja cieplna, wilgotny dowód, izolacja/ognioodporność/pochłanianie dźwi
Przewodność cieplna: 0,032 W/mK, 0,038 W/mK, 0,032-0,06 W/mK Średnica włókien: 4-6 μm, 3 μm-5 μm, 4-7 μm
Pakiet: Worki PP i PE, 1. Worki PP i PE 2. niestandardowe przez klientów, opakowanie zewnętrzne z tkaną torb Funkcjonować: Dowód wodny, zachowanie termiczne
Rozmiar: 1200*600 mm Przewodność cieplna: 0,038-0,042 w/mc, 0,037-0,042 w/mc
Hydrofobowość: ≥98%
Podkreślić:

custom rock wool insulation

,

precision-engineered mineral wool

,

thermal insulation with warranty


opis produktu

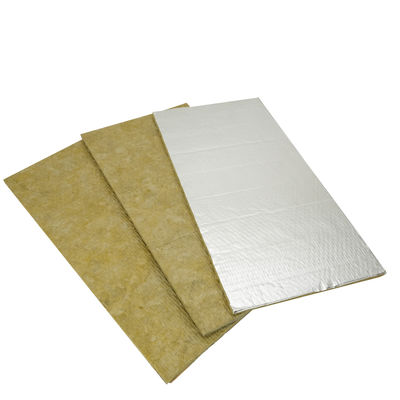

Rock Wool Board
Product introduction of the Rock Wool Board

Your project is unique. Your insulation should be too. FANRYN specializes in manufacturing rock wool boards that meet exact project requirements, from standard builds to highly specialized applications.

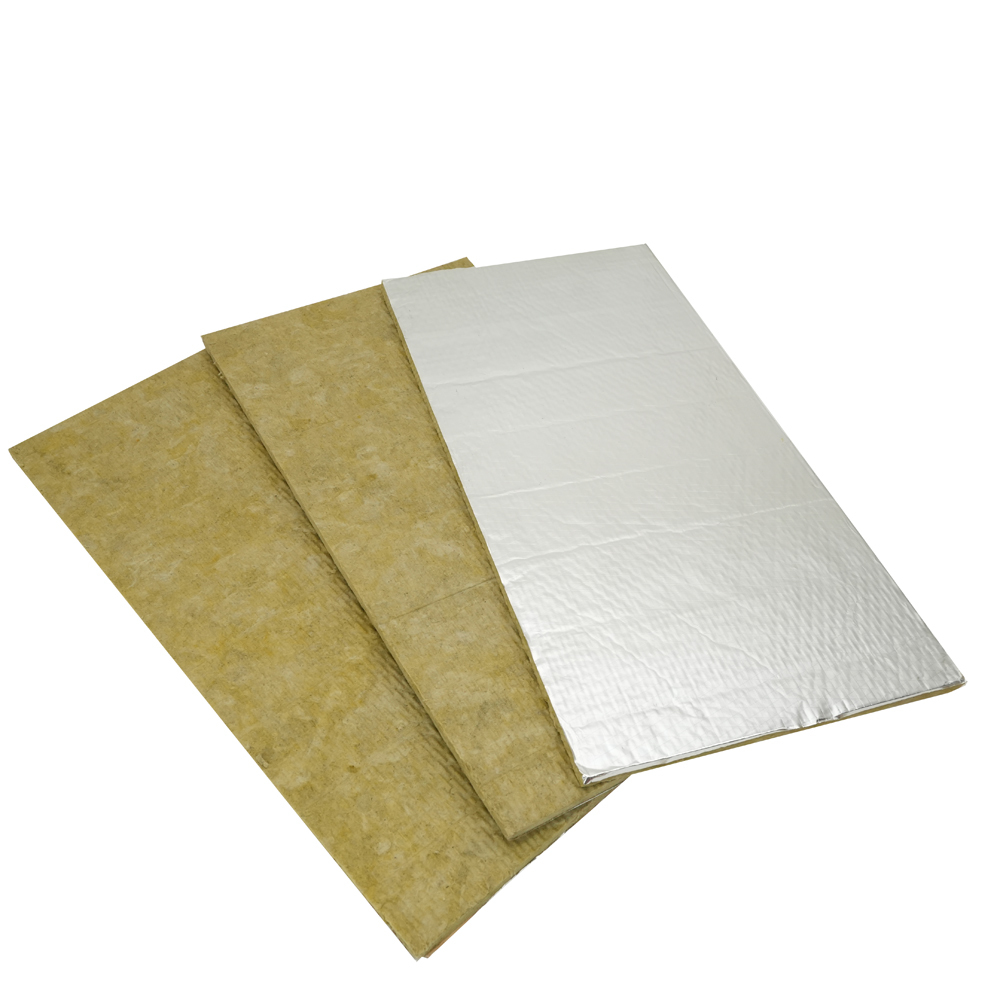

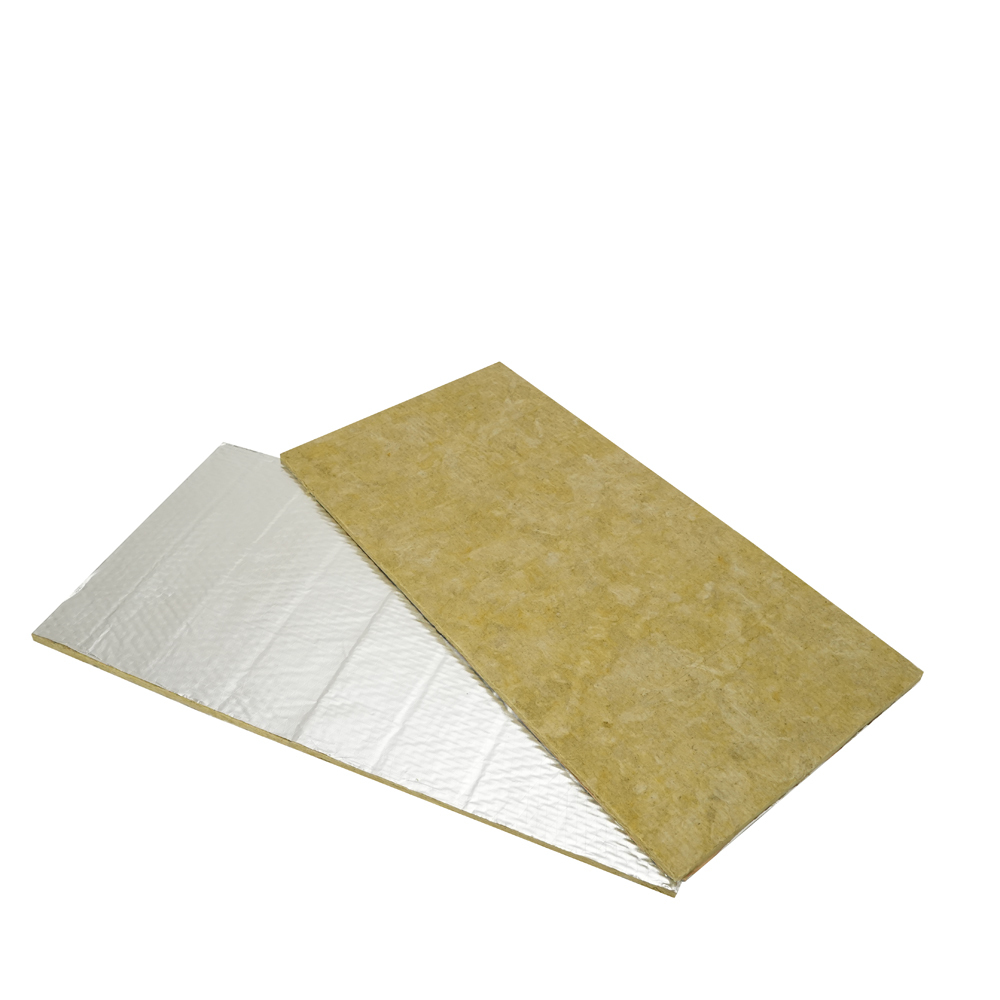

Precision-Engineered Rock Wool: Built to Your Specifications 0 Precision-Engineered Rock Wool: Built to Your Specifications 1
Product parameter of the Rock Wool Board
Properties Board Standards
Density Tolerance ±10% GB/T 19686-2005
Fire Performance Non-Combustible GB/T 5464-1999

Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity (W/mK, at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content (shot size>0.25mm) ≤12%
Moisture Content ≤0.5%
Organic Matter Content ≤4%
Melting Point >1000℃
Product size of the Rock Wool Board
Product Board
Density (kg/m3) 40-200
Size :L x W (mm) 600X1200
Thickness (mm) 30-100
Product feature and application of the Rock Wool Board
  • Rigorous Quality Control: Every batch is monitored throughout production—from raw material selection to fiberizing, curing, and cutting. We ensure density tolerance within ±10% and low shot content (≤12%) for consistent performance.

  • Customization at Your Fingertips:

    • Density: We produce boards from 40 kg/m³ to 200 kg/m³ to suit your structural and performance needs.

    • Dimensions & Thickness: While 1200x600mm is standard, we can customize length, width, and thickness (30-100mm standard, other thicknesses on request) to minimize waste and speed up installation.

  • Specialty Facings Available: Enhance functionality with integrated facings.

    • Black Scrim Reinforcement: For added tensile strength.

    • Aluminum Foil: Acts as a vapor barrier and reflective insulation.

    • Fiberglass Cloth: For high-temperature applications and durability.

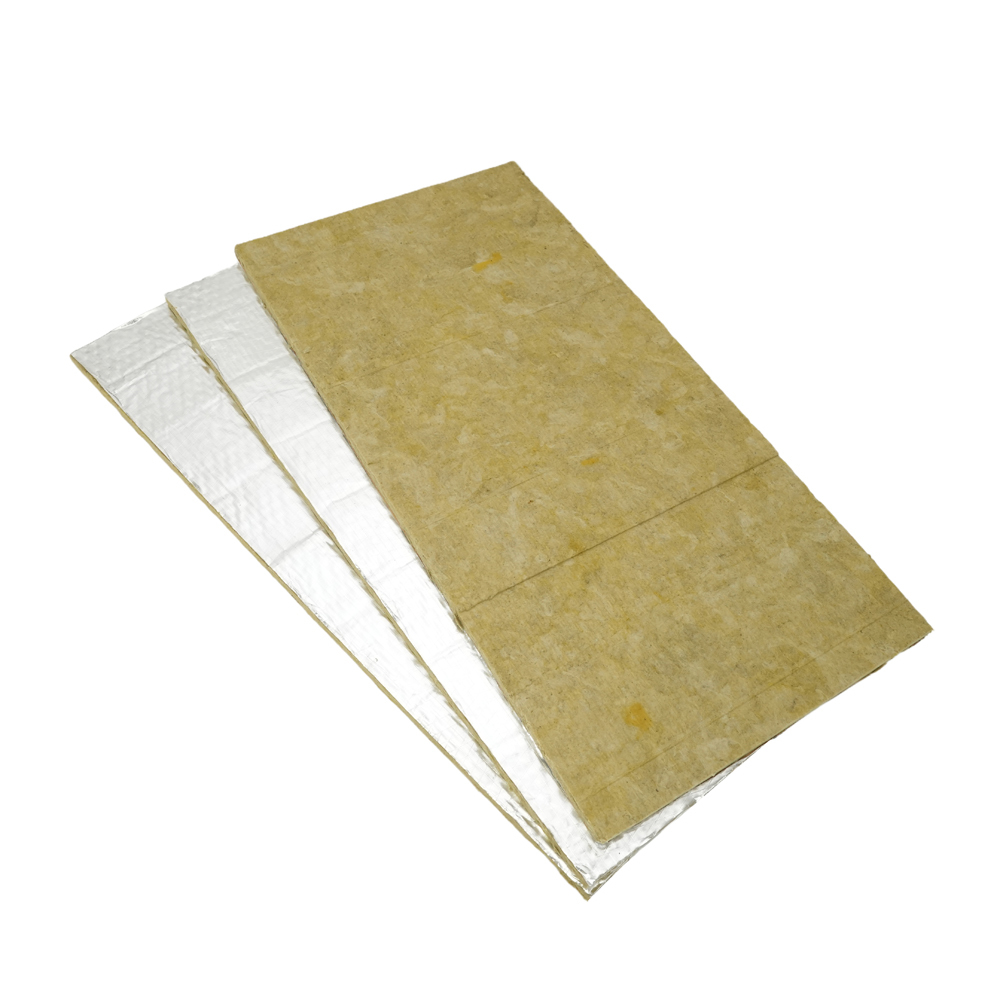

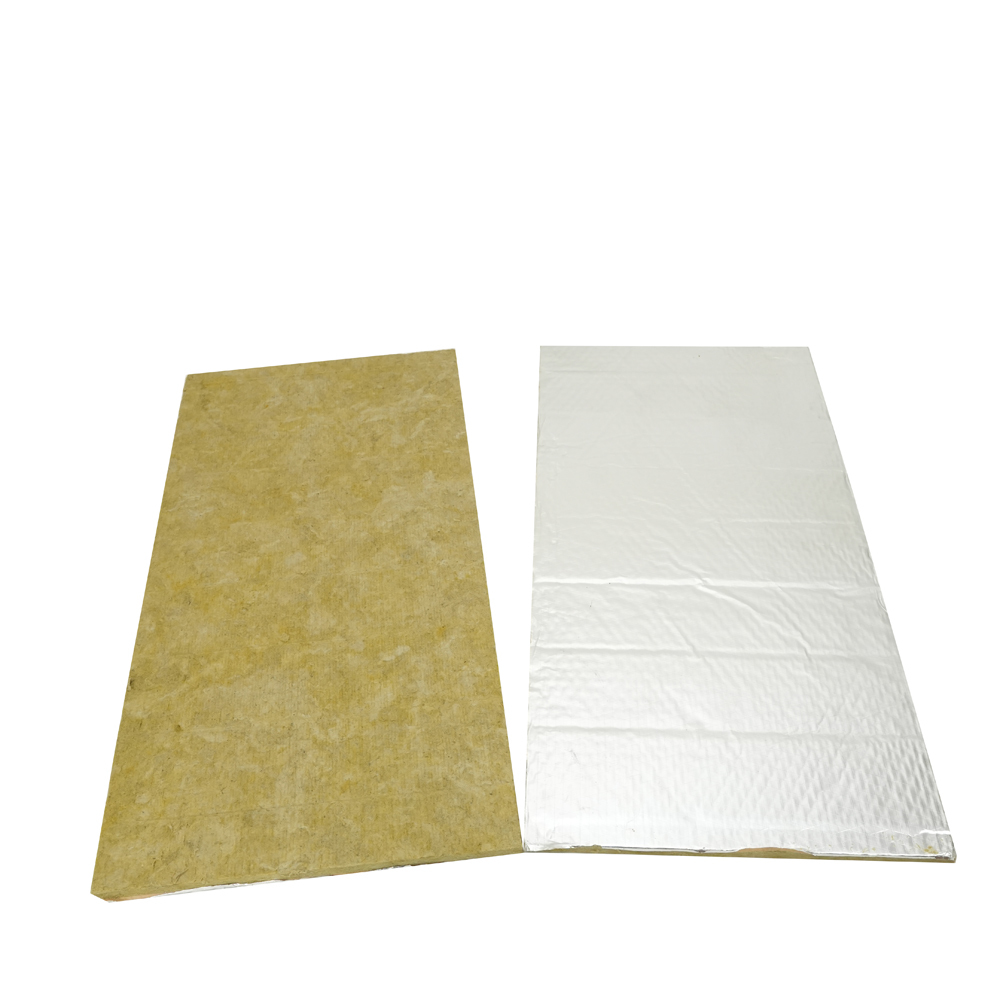

Precision-Engineered Rock Wool: Built to Your Specifications 2 Precision-Engineered Rock Wool: Built to Your Specifications 3

Production Facing of rock wool board

Wire Mesh

Aluminum foil facing

Fiberglas cloth

Production packing of the Rock Wool Board
  1. plastic bag
  2. PE shrinking bag

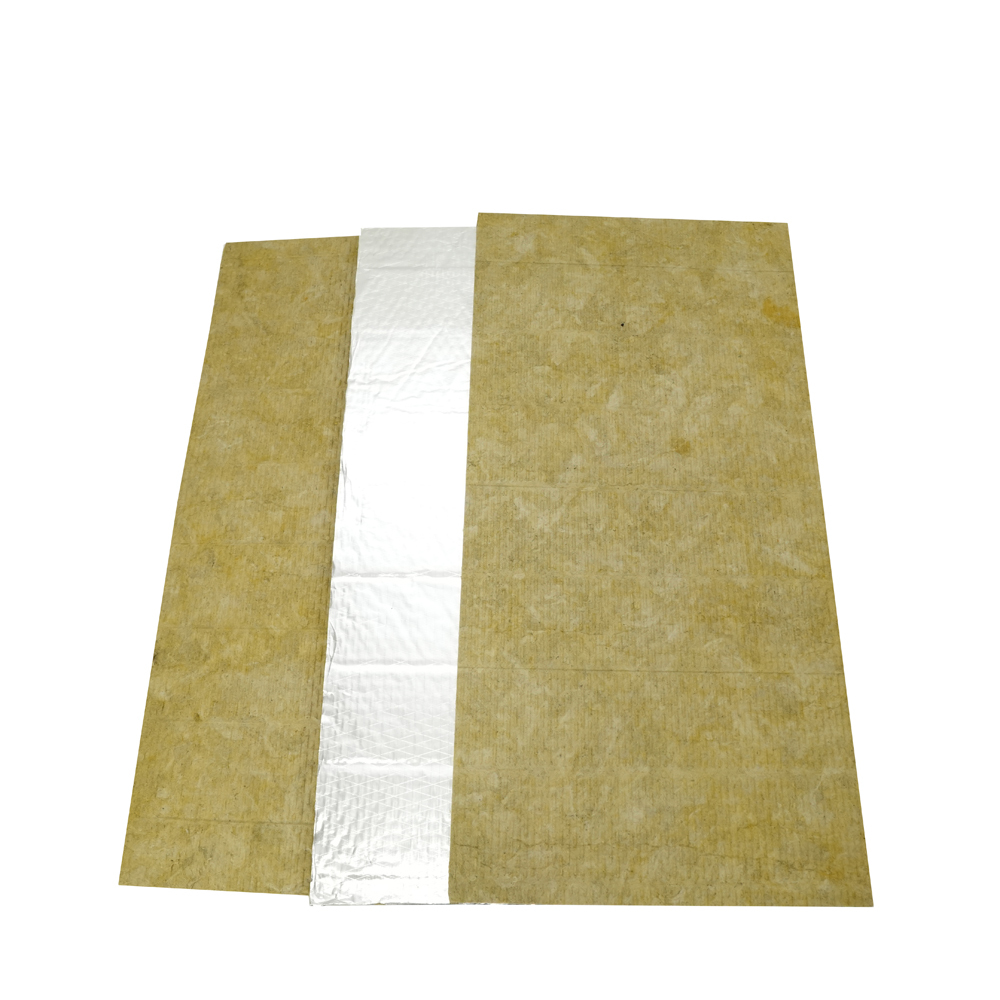

Precision-Engineered Rock Wool: Built to Your Specifications 4 Precision-Engineered Rock Wool: Built to Your Specifications 5

FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on rock wool board?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
